3kg High Precision Load Cell / Single Point Load Cell For Electronic Balances

  • 1
  • 2

Brand Name : ruijia

Model Number : RJ-6520

Place of Origin : china

MOQ : 1pc

Price : USD5-10

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : Within 2-4 Weeks

Packaging Details : Standard export packaging

Theory : Resistance Sensor

Capacity : 50-200kg

Comprehensive error : ±0.03

Safe overload (%F.S) : 120

Ultimate overload (%F.S) : 150

Excitation voltage (V) : 9-12(DC)

Accuracy : C2

Application : electronic scale and other weighing equipment

Contact Now

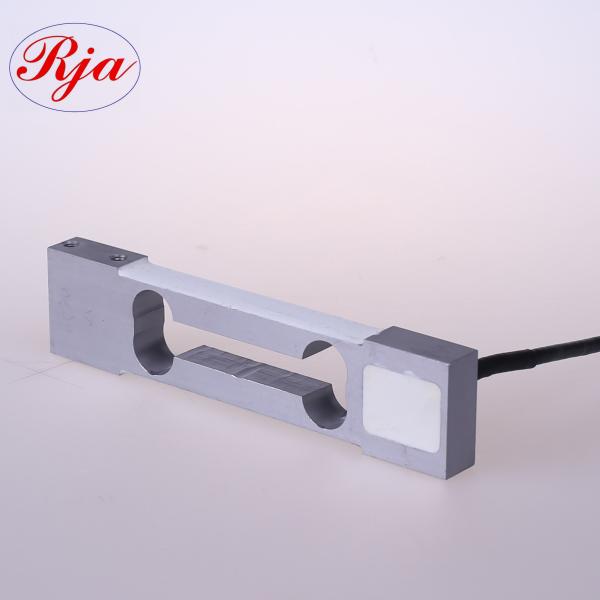

3kg micro load cell High Precision Aluminum Alloy Single Point Load Cell for Electronic Balances

Features:

The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti - corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.

Dimension:

3kg High Precision Load Cell / Single Point Load Cell For Electronic Balances

Specification:

Single Point Load Cell
Capacity 300g,600g,1kg,1.2kg,1.5kg,3kg
Accuracy Class B*
Rated output 1.0±10%mv/V
Zero balance ±5%R.O.
Linearity Error ±0.02%R.O.
Hysteresis/Repeatability Error ±0.015%R.O.
Creep(2 minute) ±0.015%R.O.
Creep(30 minute) ±0.03%R.O.
Excitation,recommended 5~12VDC
Excitation,maximum 18VDC
Temperature Compensated For Output ±0.03%R.O./10°C
Temperature Compensated For Zero ±0.05%R.O./10°C
Input resistance 405±10Ω
Output resistance 350±3Ω
Insulation Resistance ≥2000MΩ(50VDC)
Temperature Compensated -10-+40°C
Operating Temperature Range -20-+60°C
Excitation,recommended 5~12VDC
Excitation,maximum 18VDC
Safe overload 150%.R.C
Ultimate Overload 200%.R.C
Cable,and length φ4mm*0.25m
Protection Class IP65

Company Information

3kg High Precision Load Cell / Single Point Load Cell For Electronic Balances

Our company takes product technology as guide, cooperates with partners confidentially, and strives to become your better supplier with perfect after-sales service as its guarantee.Since our company began to study resistance strain gauge in 1997, it has continuously pursued technological innovation and developing and producing in strict accordance with the 0IML62# recommendation and GB/T13992-92 standard. Our company employs several senior members of the strain gauge industry as the technical consultant for many years, and has more than 20 years of technical and technological personnel engaged in the industry, so as to ensure the long-term stability and consistency of our products.For many years, our company has been strengthening its cooperation with research institutions in polymer material industry to develop base materials which suitable for high-quality resistance strain gauge. The strain gauge produced by our company is suitable for manufacturing medium-precision and high-precision weighing load cells and precision stress analysis, greatly reducing the lag and non-linear error of products and improving the stability of the product.

Application

3kg High Precision Load Cell / Single Point Load Cell For Electronic Balances

Process flowchart

3kg High Precision Load Cell / Single Point Load Cell For Electronic Balances

3kg High Precision Load Cell / Single Point Load Cell For Electronic Balances

FAQ

1.What's your MOQ?
Normally our MOQ is 100 pcs, but sometimes maybe we have other order on hand, if based on ODM, MOQ can be negotiated.

2.Are you a trading company?
We are manufacturer, our factory has passed CTI, ISO9001:2008, NTEP, OIML, we have good quality control.


3.Do you accept customized?
Yes, we have different customers make their own OEM products.
So we also can make products as per your requirement.


4.How long can I expect to receive my goods after I place an order?
Our production time is always 45 days after pre-production sample confirmation.


5.Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freight,the lead time for samples is about 7 days up on got the payment.


6.How is your shipping?
1)shipping by express(sample order) or by sea (bulk order);
2)worldwide shipping service available;
3)please contact before order as shipping cost varies time to time.


7.Will you have some discount?
1)To clients who bring repeat orders and large orders;
2)Please contact us for Better Quote.
