1000kg S Tension Compression Transducer
Tension Compression Force Sensor, respectively tension force sensors, compression load cells and tension&compression force transducers.Depending on the shape, they can be divided into miniature button compression force sensor, pancake force sensor, donut force sensor, column type force transducer, and screw type force transducer.
Tension compression force sensor are made of 17-4 stainless steel,laser welded, with high protection level.Miniature tension compression force sensor has low profile, small deflection and mini dimension, and high dynamic response frequency.
Tension Compression Force Sensors are widely used in industrial test measurement control systems such as automotive press-fit, automated assembly, 3C product testing, new energy product assembly, medical testing, and robotics fields.
| Specifications | Technique |
| Capacity | 1000kg |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±0.03 mV/V |
| Non-linearity | 0.018%F.S. |
| Hysteresis | 0.018%F.S. |
| Repeatability | 0.018%F.S. |
| Temp.effect on output | 0.014%F.S./10ºC |
| Temp.effect on zero | 0.014%F.S./10ºC |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60ºC |
| Operation temp range | -20~80ºC |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | φ5×3000mm |
Company Profile
Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.
Product Tags:
|
|

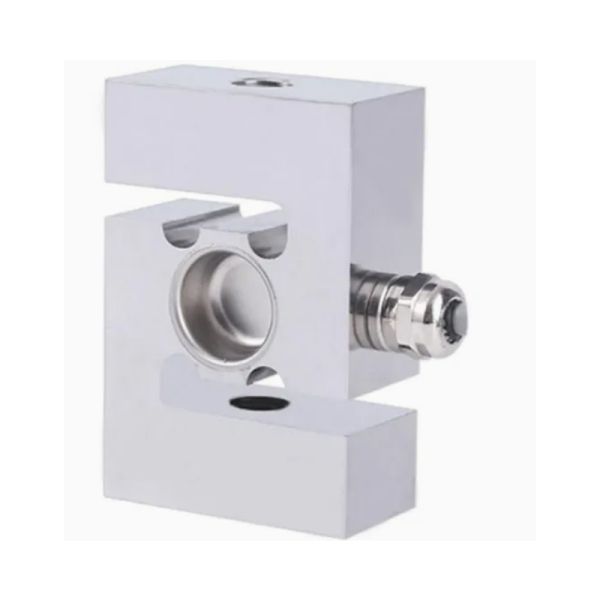

1000kg S Tension Compression Transducer Images
|
